Black ESD JEDEC Matrix Trays for Integrated Circuit
Searching for JEDEC trays that reduce contamination and static buildup? Explore our line of ESD-safe carriers.
The Semiconductor products are usually electrostatic discharge sensitive devices (ESDS), which require specific precautions in terms of transport and storage. On integrated circuits, the discharge of charged objects caused by human touch or processing tools may generate high current, which can damage or even destroy sensitive semiconductor structures. Therefore, anti-static protection measures must be taken to prevent contact with live parts and prevent static electricity from damaging the product. The ESD JEDEC tray is therefore designed to avoid this phenomenon.

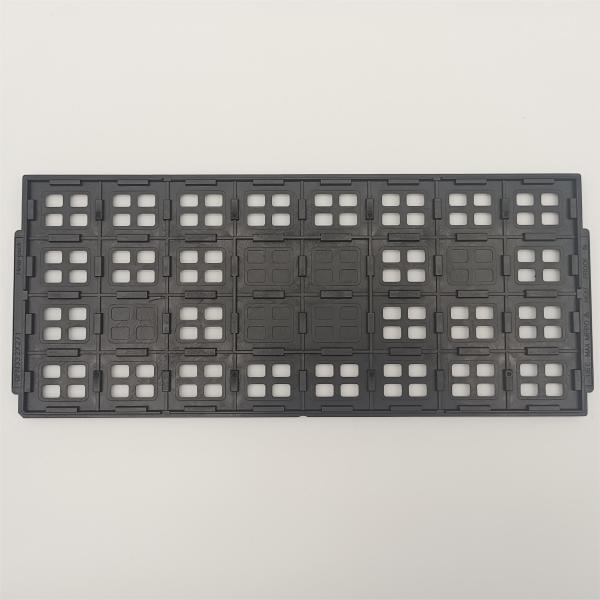

The Details of the HN22045 JEDEC Matrix Tray
The HN22045 JEDEC tray is mainly made of a common industrial material, MPPO, which has excellent anti-static and high temperature resistance. The maximum baking temperature of the tray is 135 °C, and when the temperature is exceeded, the tray size will change. Different raw materials determine the high temperature resistance of the tray, and customers can choose according to their own requirements. Such as color, anti-static properties, dimensional stability, and maximum temperature rating.
Regarding the production of trays, our company is equipped with advanced mold processing and injection molding equipment, as well as a variety of testing equipment to ensure product quality. Our designed trays comply with JEDEC international standards and have strong versatility. It can provide protection for a variety of packaged products while reducing transportation costs.
Technical Parameters:
| Brand | Hiner-pack | Outline Line Size | 322.6*135.9*7.62mm |
| Model | HN22045 | Cavity Size | 33.53*27.37*3.4mm |
| Package Type | Die | Matrix QTY | 4*8=32PCS |
| Material | MPPO | Flatness | MAX 0.76mm |
| Color | Black | Service | Accept OEM, ODM |
| Resistance | 1.0x10e4-1.0x10e11Ω | Certificate | RoHS |
Reference to the temperature resistance of different materials with the JEDEC Tray:
| Material | Bake Temperature | Surface Resistance |
| PPE | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Carbon Powder | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| MPPO+Glass Fiber | Bake 125°C~Max 150°C | 1.0*10E4Ω~1.0*10E11Ω |
| PEI+Carbon Fiber | Max 180°C | 1.0*10E4Ω~1.0*10E11Ω |
| IDP Color | 85°C | 1.0*10E6Ω~1.0*10E10Ω |
| Color, temperature, and other special requirements can be customized |
Application:
Semiconductor Industry; Electronics Industry; Solar Photovoltaic Industry; Medical Industry
Service:
1. We offer an ESD total Solution to customers. Many other related products are available if needed.
2. OEM is welcomed or designed as per customer request.
3. The best & professional sales services.
4. Honest but competitive price and Quality assured quotation.
5. 100% QC inspection before shipment.
FAQ:
Q1: Are You a Manufacturer or a Trade Company?
We are a 100% Manufacturer specializing in packaging for over 12 years with a 1500 square meter workshop area, located in Shenzhen, China.
Q2: What is the material of your product?
ABS.PC.PPE.MPPO.PEI.HIPS...etc
Q3: Can you help with the design?
Yes, we can accept your customization and do the packaging for you according to your requirements.
Q4: How can I get the quotation for the custom products?
Let us know the size of your IC or component thickness, and then we can make a quotation for you.
Q5: Can I get some samples before making a bulk order?
Yes, the free sample in stock can be sent, but the shipping fee should be paid by you.
Q6: Could you put my logo in our product?
Yes, we can put your logo in our product, show us your logo firstly please.
